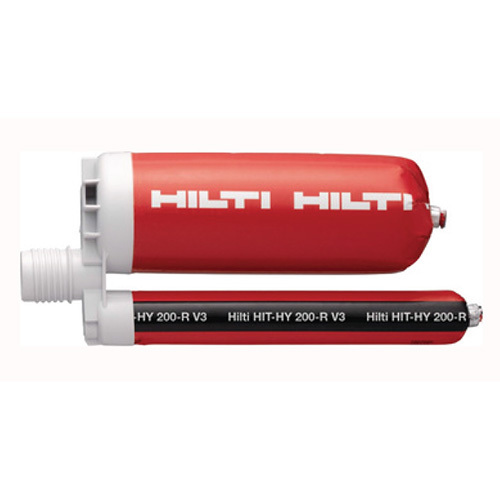

HIT-HY 200-R V3 Adhesive Anchor

Get a Price/Quote

MOQ : 100 Units

HIT-HY 200-R V3 Adhesive Anchor Specification

Finishing
Grey

Surface Treatment
No additional treatment required

Capacity
330 ml (per cartridge)

Weight
600 g (approx. per cartridge)

Material
Hybrid adhesive (epoxy acrylate resin)

Type
Injection type chemical anchor

Length
330 ml (cartridge length)

Diameter
For use with anchors M8-M30 and rebar 8-32 mm

Surface
Can be used on dry, wet, or water-filled concrete

Grade
High Performance

Curing Time at 20C
30 minutes

Temperature Range
-10C to +40C (substrate temperature)

Shelf Life
18 months (unopened, stored properly)

Base Material
Concrete (cracked and uncracked)

Working Time at 20C
10 minutes

Drill Hole Cleaning Method
SafeSet Technology compatible

Anchoring Element
Threaded rod and rebar

Applications
Structural connections, anchoring of steel elements, reinforcement bars, and base plates

Color
Grey

Approvals/Certificates
ETA, ICC-ES, CE marked

HIT-HY 200-R V3 Adhesive Anchor Trade Information

Minimum Order Quantity
100 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HIT-HY 200-R V3 Adhesive Anchor

Capitalise on the formidable performance of the HIT-HY 200-R V3 Adhesive Anchor, a paragon in advanced anchoring solutions. Featuring a robust hybrid adhesive (epoxy acrylate resin), this injection-type chemical anchor is engineered for uncommon durability in both cracked and uncracked concrete. Advance Purchase options ensure you're ready for rigorous structural applications, anchoring steel elements, reinforcement bars, and base plates. With a 30-minute curing time at 20C, compatibility with SafeSet Technology, and certified by ETA, ICC-ES, and CE, it is exceptionally suited for varied environments. Stock available from featured service providers and suppliers across India.

Uncommon Versatility for Structural Excellence

HIT-HY 200-R V3 Adhesive Anchor is used as a high-performance chemical anchor in structural connections and construction reinforcement. Specifically designed for anchoring threaded rods, rebar, steel base plates, and reinforcement bars, it is suitable for applications in both dry and water-filled concrete. Its compatibility with anchors M8-M30 and rebar 8-32 mm makes it adaptable for a range of projects, ensuring unmatched versatility in commercial and industrial settings.

Swift Supply & Domestic Coverage Across India

The HIT-HY 200-R V3 is available for immediate shipping with stock ready for dispatch from trusted Indian suppliers. Shipped goods can be arranged via FOB ports with prompt quotation responses to your project requirements. This formidable paragon of anchoring solutions caters to the main domestic market across India, supported by a robust supply ability that ensures availability for both large and small-scale construction endeavors.

FAQ's of HIT-HY 200-R V3 Adhesive Anchor:

Q: How is the HIT-HY 200-R V3 Adhesive Anchor applied in construction projects?

A: The anchor is injected directly into pre-drilled holes in cracked or uncracked concrete using compatible application tools. The threaded rod or rebar is then inserted, and the material cures in 30 minutes at 20C, securing structural elements such as base plates and steel members.

Q: What cleaning process is recommended before using the adhesive anchor?

A: For optimal performance, the drill hole should be cleaned using SafeSet Technology or manual cleaning methods to remove dust and debris. This ensures maximum adhesion and load-bearing capability of the anchor.

Q: When is the best time to use the adhesive anchor after mixing?

A: At 20C, the working time is approximately 10 minutes. It is important to complete installation of the anchor element within this period for proper bond strength.

Q: Where can the HIT-HY 200-R V3 Adhesive Anchor be used?

A: This product is suitable for use in varied environments, including dry, wet, or even water-filled concrete substrates, making it ideal for indoor and outdoor structural connections.

Q: What benefits do ETA, ICC-ES, and CE certifications provide?

A: These approvals ensure that the adhesive anchor complies with international safety and quality standards, providing peace of mind regarding performance consistency, reliability, and suitability for demanding applications.
